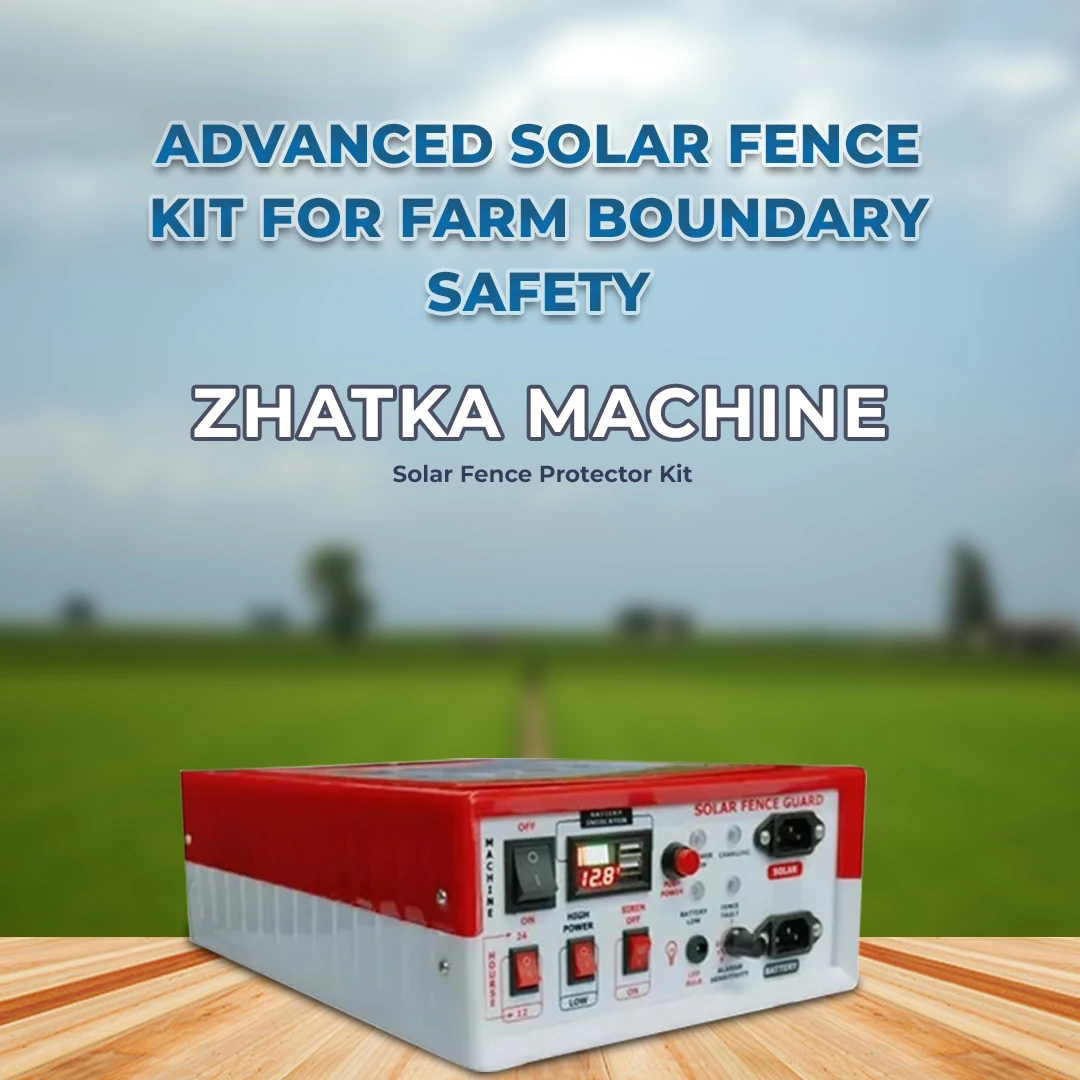

The Kamal Agrotech Zatka Machine Kit is a complete solar-powered electric fence protector built to safeguard agricultural land, orchards, and farm boundaries from wild animals, stray cattle, and intruders. This Jhatka machine kit covers up to 50 acres of land in a single setup, powered by a 40-watt solar panel and a maintenance-free 8Ah battery, making it ideal for remote farms with limited electricity access. The Zatka machine kit delivers a powerful 10kV non-lethal pulse through fence wires, scaring away nilgai, wild boar, monkeys, and stray cattle without causing permanent harm.
Key Features and Benefits:
10kV High-Voltage Output: This kit delivers a strong 10,000-volt pulse through the fence wire, giving an effective but non-lethal shock that scares wild animals away.
40W Solar Panel + 8Ah Battery: This Zatka machine kit runs on a 40-watt solar panel paired with an 8Ah battery, giving 24-hour operation without any electricity bill.
Covers Up to 50 Acres: This kit protects up to 50 acres of farmland in a single install — ideal for large fields, orchards, and plantation crops.

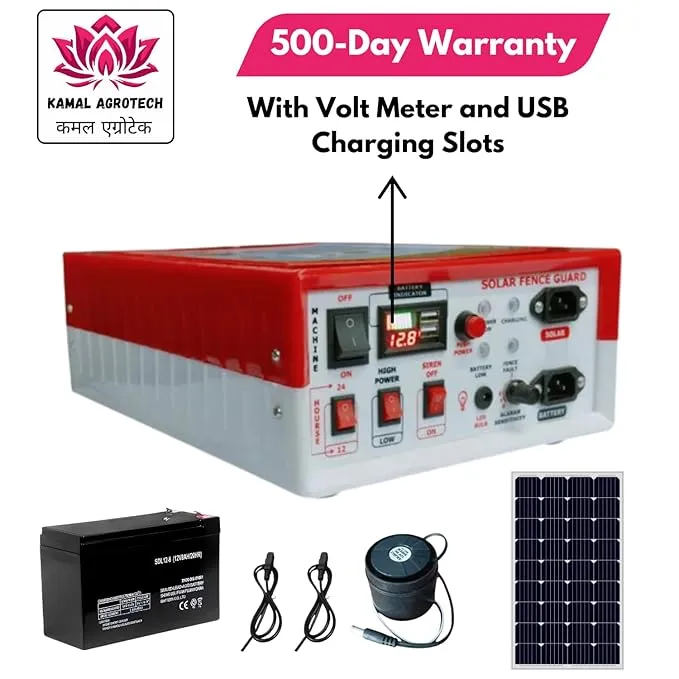

LCD Display and Voltmeter: The Zatka machine kit comes with an LCD, built-in voltmeter, and indicator lights for real-time monitoring of fence voltage and battery status.

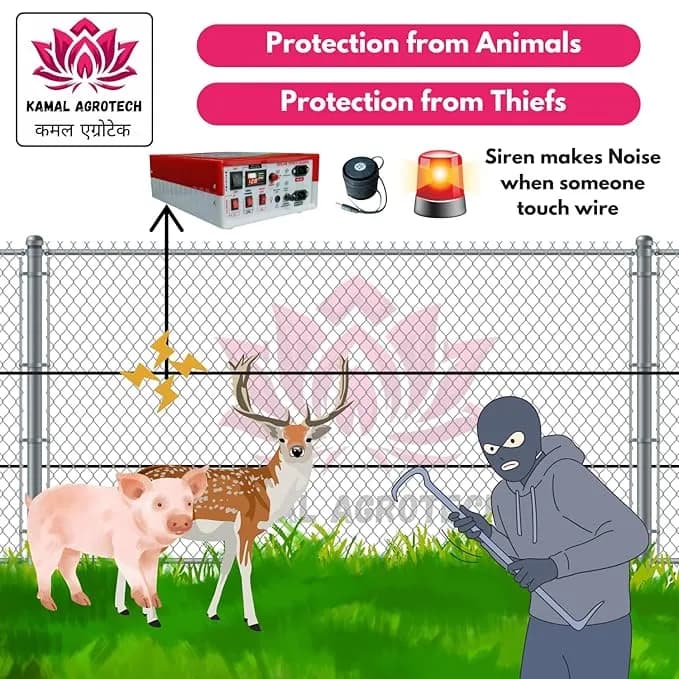

Loud Siren Alarm: This kit includes a built-in siren that triggers a loud alert when the fence is touched, warning the farmer of any breach.
Multi-Mode Operation: The Jhatka machine kit offers high/low shock control, a 12/24-hour timer, and a toggle-able buzzer for flexible use across seasons.
Kamal Agrotech Zatka Machine Kit Specifications:
Specifications | Details |
|---|
Product Name | Kamal Agrotech Zatka Machine Kit |
Type | Solar Fence Protector Kit / Jhatka Machine Kit |
Brand | Kamal Agrotech |
Output Voltage | 10kV |
Solar Panel | 40 Watts |
Battery | 8Ah Rechargeable |
Coverage Area | Up to 50 Acres |
Display | LCD Screen with Indicators |
Built-In Voltmeter | Yes |
Charging Port | USB Socket (for mobile/power bank) |
Timer | 12 / 24 Hour |
Shock Control | High / Low Mode |
Siren | Yes, Loud Alarm with Adjustable Sensitivity |
Buzzer | On/Off Toggle |

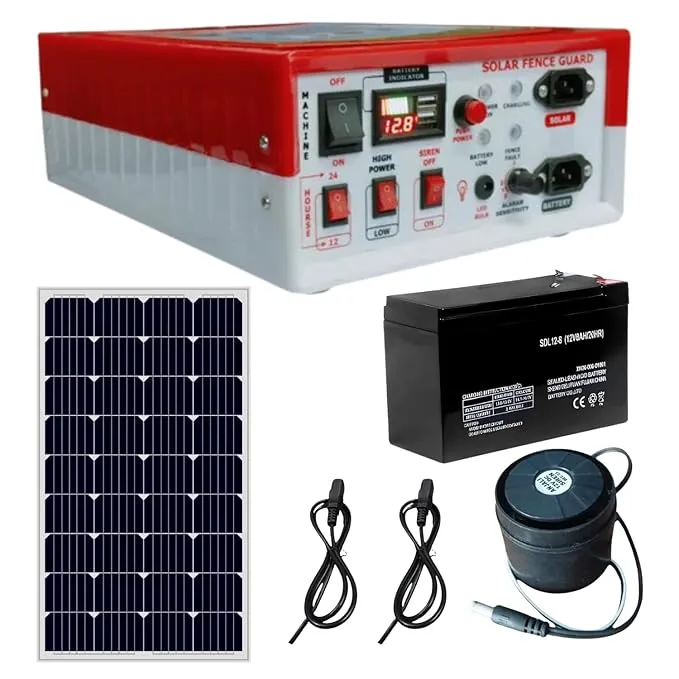

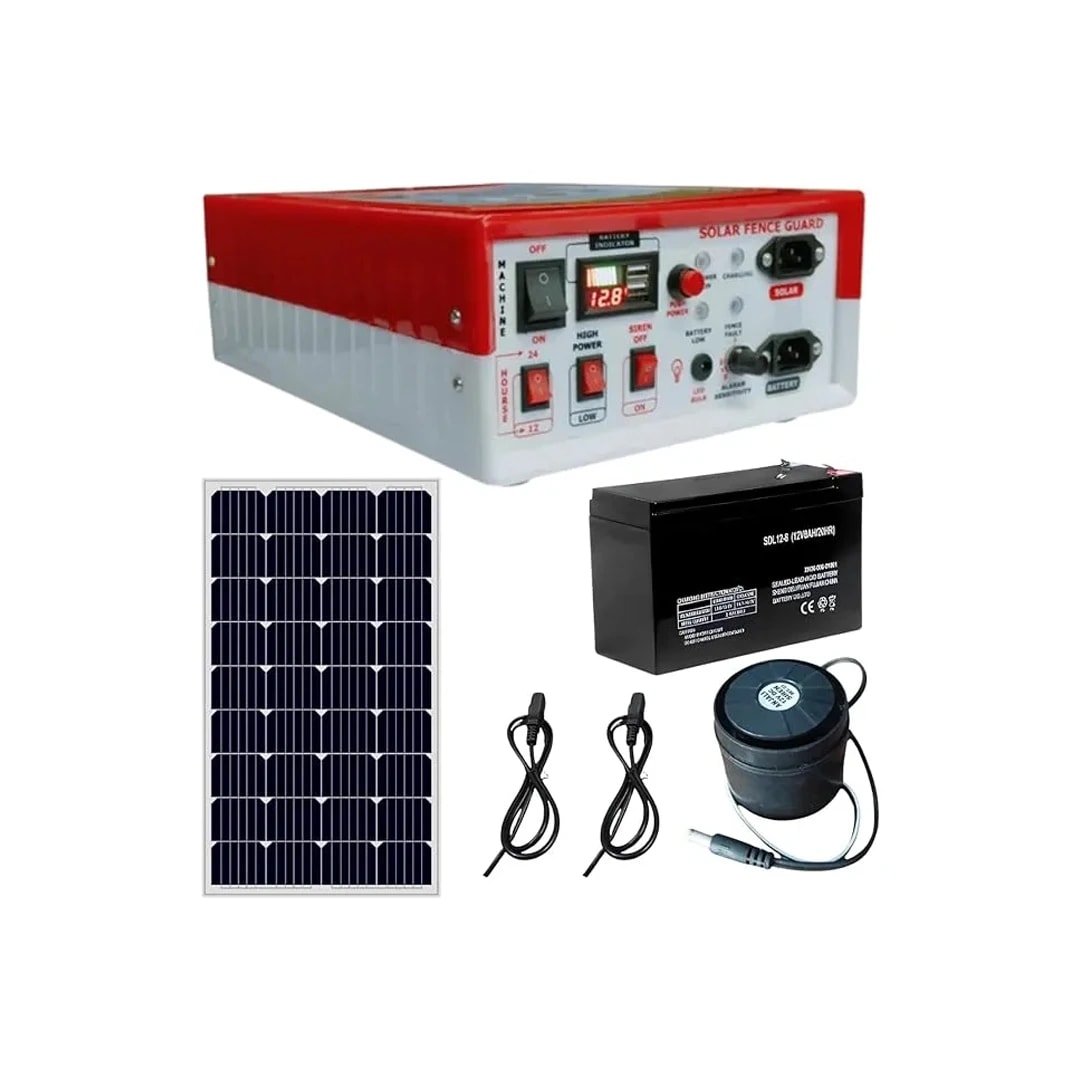

Kit Includes | Fence Protector Machine, 40W Solar Panel, 8Ah Battery, Siren, Insulators |
Support | 500 Days |
Country of Origin | India |
How to Assemble:
Unpack the Zatka machine kit and lay out all parts: fence protector machine, 40-watt solar panel, 8Ah battery, siren, insulators, connecting wires, and instruction manual.
Walk the boundary of the farm and mark pole positions every 8 to 10 feet around the perimeter to be protected.
Install wooden, PVC, or concrete poles at the marked points, ensuring each pole is firmly fixed at least 2 to 3 feet into the soil.
Fix high-quality insulators on each pole at the height where the electric wire will run; the kit includes the required insulators for standard installation.
Run the galvanised electric fence wire through all insulators along the poles, keeping the wire taut but not over-stretched.
Mount the Zatka machine kit fence protector on a centrally located pole or shed wall at chest height, protected from rain and direct sunlight.

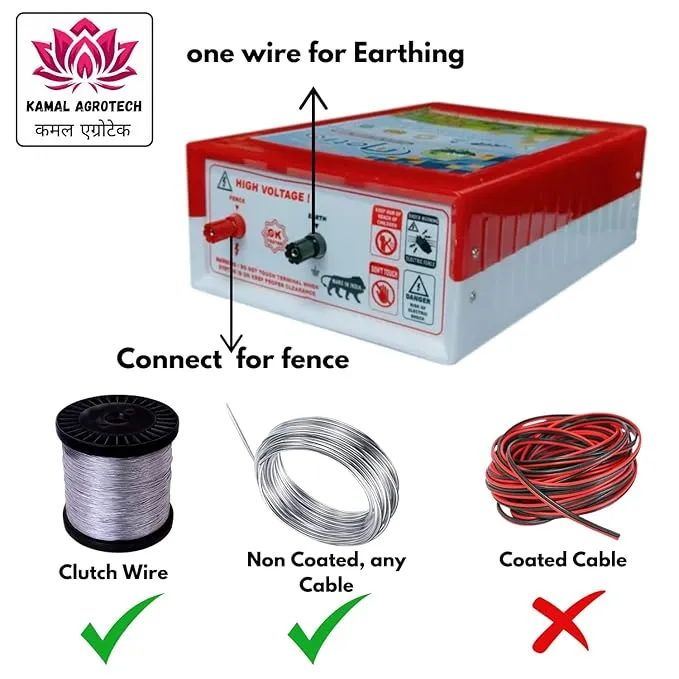

Connect the red phase wire to the "Phase" slot on the machine and run it directly to the fence wire on the first insulator.
Connect the black earth wire to the "Earth" slot, then drive a metal grounding rod 2 to 3 feet into damp soil and attach the wire firmly to it.
Connect the 8Ah battery to the Jhatka machine kit terminals, then connect the 40-watt solar panel to the battery, ensuring the panel faces south for maximum sun exposure.
Switch on the Zatka machine kit and use a fence tester to verify that the voltage along the fence reads between 5,000 and 10,000 volts, then install warning boards at all gates and visible spots.
Safety Instructions:
Always switch off the Zatka machine kit before any wiring repair, insulator replacement, or fence maintenance work to avoid accidental electric shock.
Install clearly visible warning signs in Hindi, English, and local languages around the fence perimeter so visitors and labourers know the line is electrified.
Keep small children, pets, and farm animals well away from the energised fence; this machine's pulses are non-lethal but can cause sharp pain on contact.
Inspect the fence wire weekly for breaks, vegetation contact, or loose insulators, since weeds and grass touching the wire drain the shock power.
Clean the 40-watt solar panel of the Jhatka machine kit every 7 to 10 days with a soft dry cloth to maintain peak charging.
Store the kit fence protector indoors during heavy storms, hailstorms, or cyclonic winds to protect the electronics from damage.
Frequently Asked Questions (FAQs):
Q1. How does the Kamal Agrotech Zatka machine kit actually protect my farm from wild animals?
The Zatka machine kit sends a 10kV electric pulse through the fence wires every 1 to 2 seconds. When a wild animal like nilgai or wild boar touches the wire, it gets a sharp but non-lethal shock and quickly learns to stay away from the boundary. The pulse is short and safe, with no permanent harm to the animal.
Q2. Will the Zatka machine kit work in remote farms without grid electricity?
Yes, this is the biggest advantage of the Zatka machine kit. The 40-watt solar panel charges the 8Ah battery during daylight, and the stored energy runs the fence energiser all night and through cloudy spells, making the system ideal for off-grid farms and plantation areas.
Q3. Is the Zatka machine kit shock harmful to humans or animals?
No, the shock from the Zatka machine kit is short-duration, low-current, and non-lethal. It is designed to startle, not injure, animals or humans. The high voltage paired with very low current is safe by design, but young children and persons with heart conditions should still avoid direct contact.
Q4. What maintenance does the solar Jhatka machine kit need?
The solar Jhatka machine kit needs simple weekly checks — clean the solar panel, walk the fence perimeter to remove weeds touching the wire, check insulators for cracks, and test fence voltage with a fence tester. The 8Ah battery typically lasts 2 to 3 years with proper care.
