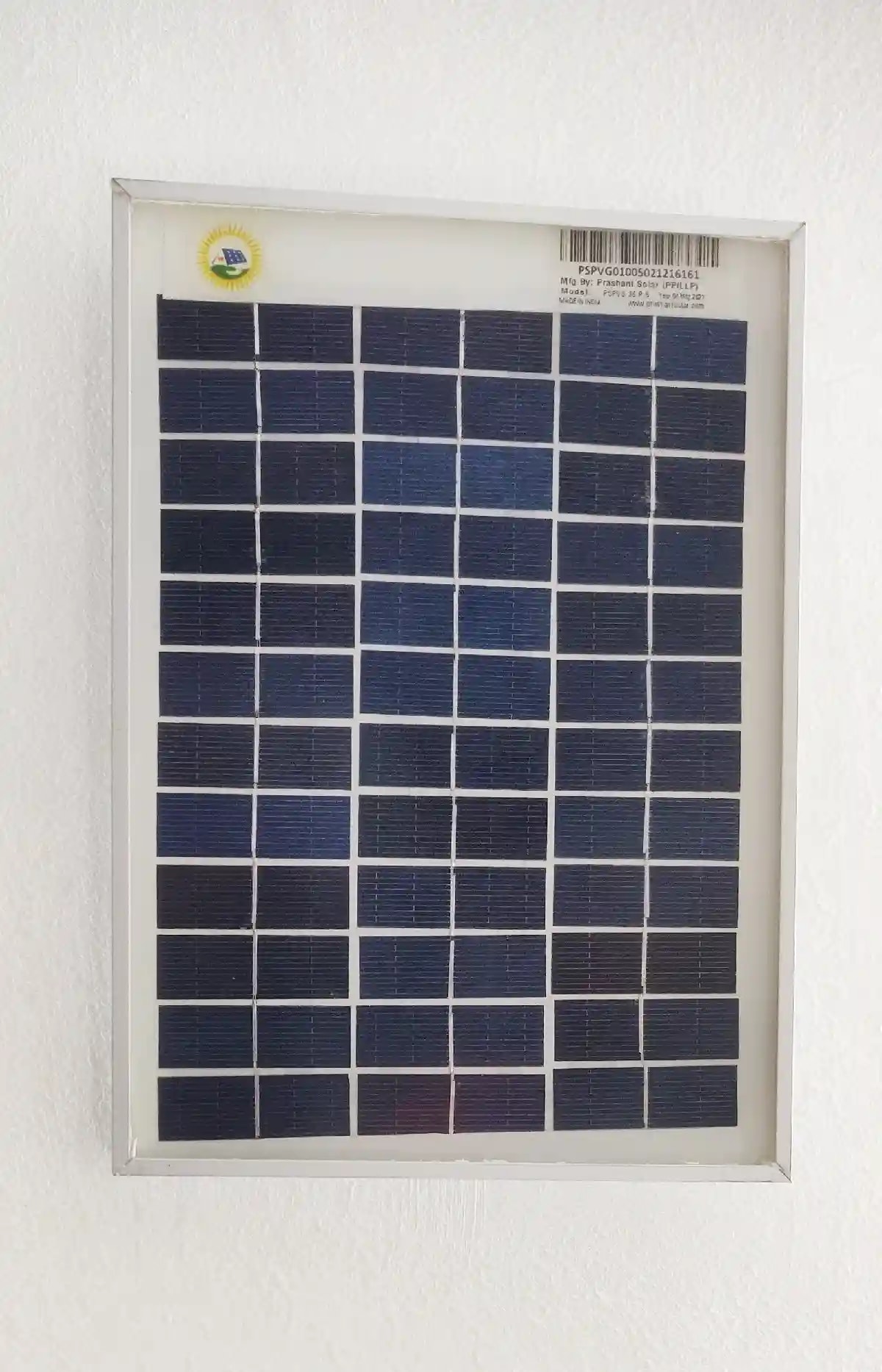

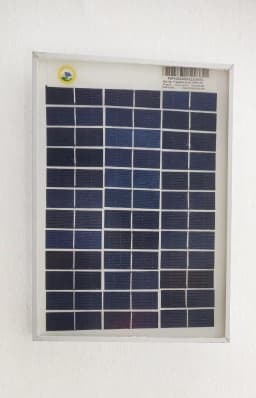

This solar panel is used with a suitable Solar Charge Controller for home light and Mobile charger applications, and other small projects for educational purposes also.
It is called a 12V panel and can be used for charging a small battery of 12 volts or below for home lights or small project applications with a suitable solar charge controller.
Polycrystalline Solar PV panel.
FEATURES:
Model No: EPSPPV10W12VPS
Max. Power - 10w, Voc - 22 v, Isc -2.6A, Vmp -18v, Imp-2.23A.
No. of cells - 36.
Weight - 0.5 kg.
All electrical parameters are specified under STC.
