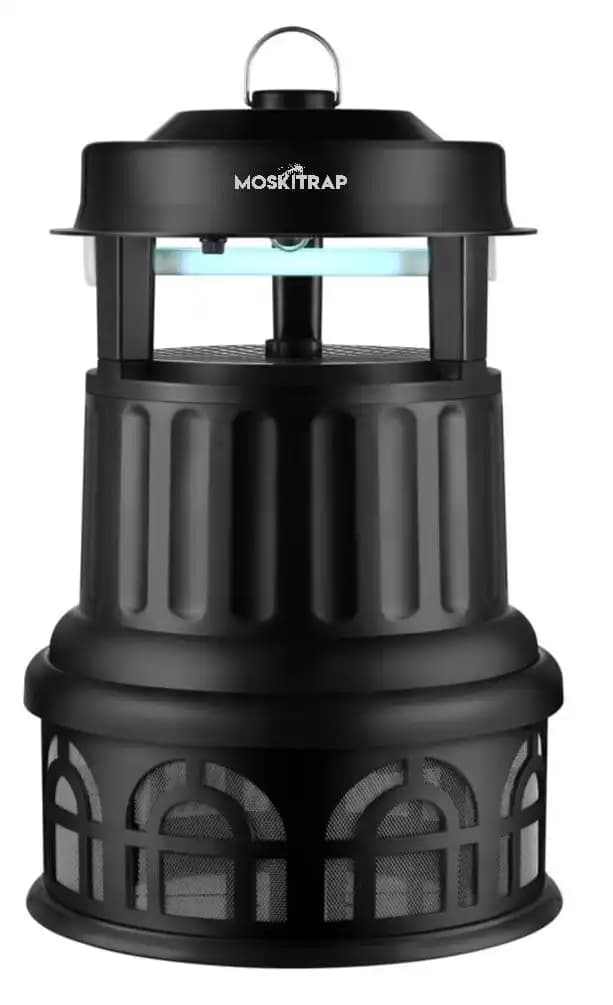

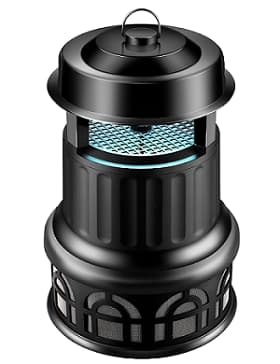

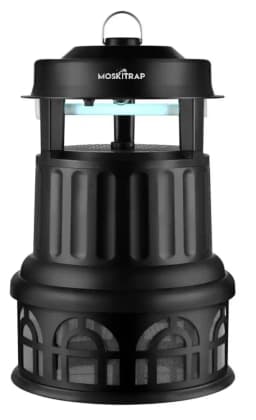

Description: Flying insects are attracted to the unit by the UV light and CO2 that is generated by the photo-catalysis between the UV lamps and the special TiO2 coating. The fan then pulls the insects into the screened base, trapping them until they dehydrate and die. The base can be removed, allowing the contents to be periodically emptied into the trash. The see-through screen shows the insects trapped in the compartment, alerting you when the cage needs to be emptied.

1. Unpack the unit. Save cartons for off-season storage (if needed). Remove the cardboard insert from the retaining cage.

2. Place the air damper assembly in the retaining cage with the crossbar facing up. Align the six damper notches with the matching notches on the retaining cage.

3. Place the trap on the retaining cage and twist clockwise to the lock position.

4. If hanging the unit, place it approximately 3–6 feet above �?oor or ground for optimal catch-rate and easy access for cleaning. The unit can also be placed on the floor or ground.

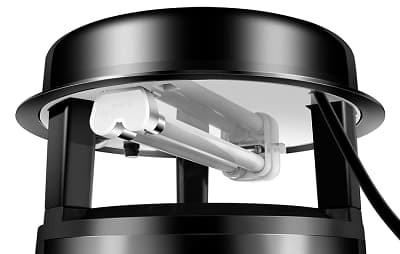

5. Turn the power switch to the “ON” position. The switch is located under the upper housing near the light bulbs.

6. For best catch results leave the unit on at all times, except when cleaning or servicing.

7. Catch rate activity will be higher at night. For best catch results, place the unit away from other competing light sources.

8. It is recommended to place the unit 20 to 40 feet away from where people will be sitting.
